Introduction

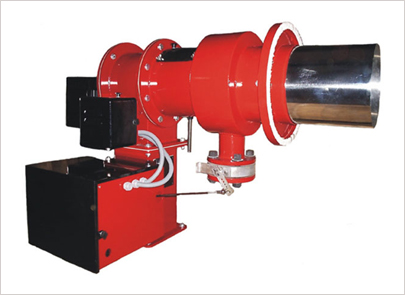

This panchal industrial oil burner series incorporates fully automatic pressure jet. spill return type burners with external fan units and pump units installations.
Panchal burners can be utilised with direct and indirect heat transfer processes. The extensive applications on boilers, furnaces, heaters and process plants can be equipped with these versatile burners. Burners are designed to operate on light, medium and heavy fuel oils. Panchal burners are manufactured to high quality standards. Burner components are extensively tested to ensure economical, high performance product with exceptionally high combustion efficiency
Salient features:
- Fully automatic operation.
- Experienced and proven design.
- Higher turn down ratio.
- Compound controller system for accurate controlling of fuel/combustion air ratio throughout the output range.
- Proportionate burner modulation system is possible for variable load applications. by installing positioner controller.
- Facilitates easier burner maintenance and adjustments.
Specifications :
| Series | Burner output kg/hr |
Flame dia. mm |
Flame length mm |
| PA 15 | 30-90 | 400 | 1650 - 2550 . |
| PA 20 | 50 -160 | 500 | 2350 - 3250 |
| PA 25 | 75 - 250 | 650 | 2750 - 4150 |
| PA 35 | 160 - 550 | 900 | 4250 - 5850 |
| PA 45 | 250 - 750 | 1050 | 5250 - 7450 |
| PA 50 | 300 - 900 | 1200 | 5750 - 8050 |
| flame dimensions are approximate & for reference only. | |||

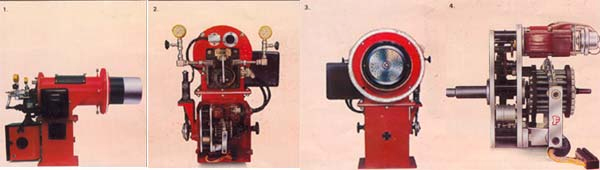

- 1. Burner side view in the interest of continual improvement

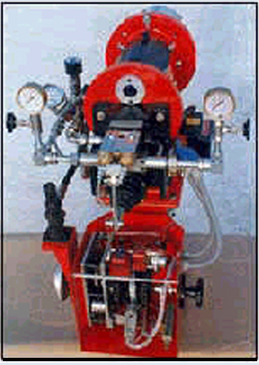

- 2. Burner front view in product and performance, Panchal
- 3. Burner end view reserves all rights to change
- 4. Air regulating unit specifications without notice.
Burner Ranging from 50 kg/hr. firing rate to 1000 kg / hr firing rate. Suitable for Boilers / Air Heaters / Furnaces etc.

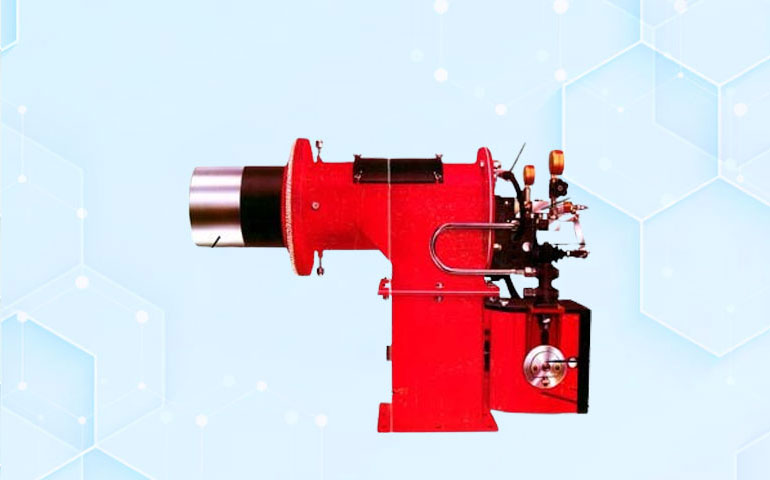

Industrial Oil Burner
